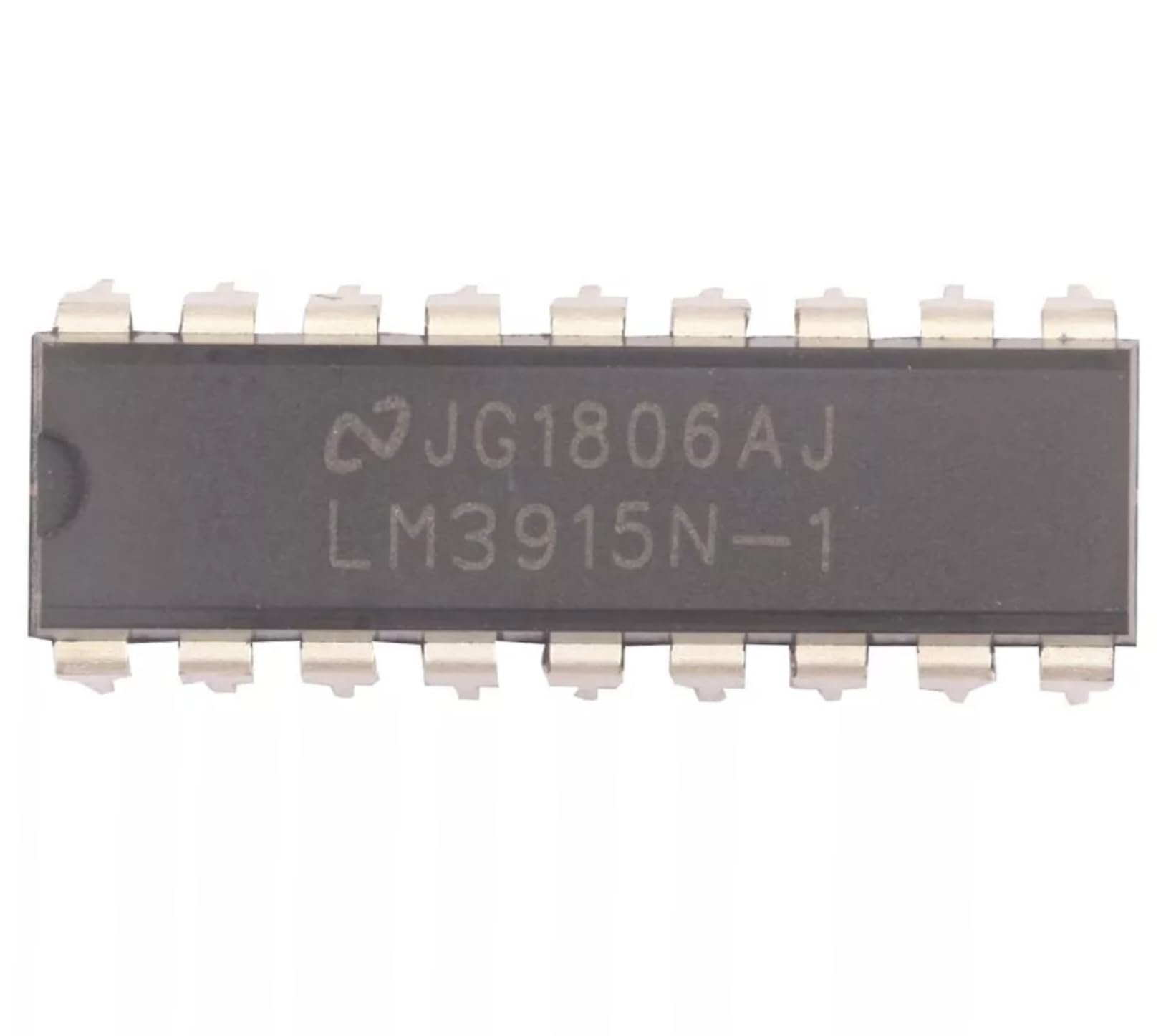

LM3915N-1 Dot/Bar Display Driver, DIP-18 Package

The LM3915N-1 is a sophisticated dot/bar display driver housed in a DIP-18 package, designed for precise visual representation of electronic signals. This versatile integrated circuit excels in creating LED-based visual displays, offering both dot and bar graph modes for flexible implementation. Perfect for audio equipment, signal strength indicators, and various monitoring applications, it provides reliable performance in converting analogue signals into clear visual outputs. The device's DIP-18 configuration ensures straightforward integration into electronic projects, whilst its robust architecture maintains consistent display characteristics. Whether you're designing professional audio equipment, measurement devices, or any application requiring visual signal representation, the LM3915N-1 delivers dependable performance with its industry-standard pinout and operational flexibility. • DISPLAY DRIVER: Versatile dot/bar display driver integrated circuit in DIP-18 package format for LED level indication applications. • OPERATING MODES: Features dual-mode operation allowing both dot and bar graph display formats for flexible visual representation. • PACKAGE TYPE: Standard 18-pin DIP (Dual In-line Package) configuration for easy integration and mounting. • COMPATIBILITY: Designed for LED arrays and level meter applications, suitable for audio equipment and signal strength indicators. • FUNCTIONALITY: Provides logarithmic response for wide-range signal monitoring with precise visual feedback.
