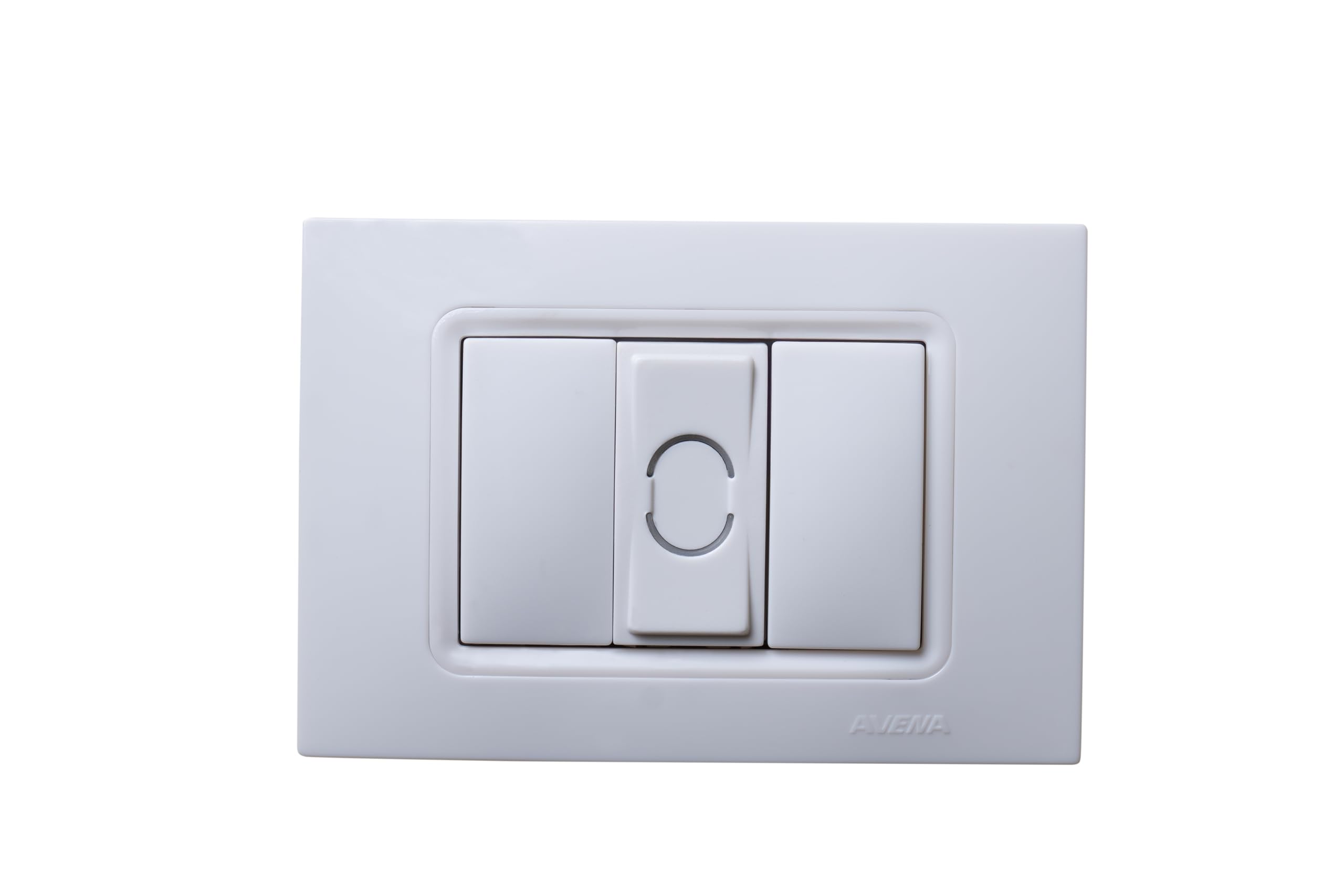

AION WIFI Shutter Switch - White - With the cover

<p>Turn your home smart in less than 5 minutes by simply replacing your old switches with AION WIFI smart switches, and get a 5 Years Replacement Warranty.&nbsp;&nbsp; Category : Shutter Switch Color : White WIFI : IEEE 802.11 b/g/n 2.4GHz Input : AC 100-240V 50/60Hz Output : 10A Touch control App Control (AION Home) Automation Schedule Voice Control Share control with family</p><p><br></p><p></p><p><b>Input Range:&nbsp;</b> AC 70-270V 50/60Hz | DC 100-380V&nbsp;</p><p><b>&nbsp;Number of Channels:</b>&nbsp;&nbsp; 2 relay channels to control 3 wire ac shutter motors.</p><p><b>&nbsp;Max load per Channel</b>:&nbsp; The maximum load per channel is 10A, or up to 2200 Watts.&nbsp;</p><p><b>&nbsp;Load&nbsp;Type:&nbsp;</b>&nbsp; Works with any 3-wire motor that opens a shutter, garage door, or curtain under 2200 Watts.</p><p>&nbsp;<b>Button:&nbsp;&nbsp;</b> Supports up-stop-down control using the touch button. Used to reset the device state and enter pairing mode when pressed for more than 20 seconds.</p><p><b>Working Temperature:</b>&nbsp;&nbsp; 0°C–50°C&nbsp;</p><p><b>&nbsp;Wireless/WiFi Protocol:&nbsp;</b>&nbsp; 802.11 b/g/n (2.4 GHz)&nbsp;</p><p><b>Frequency:</b>&nbsp;&nbsp; 2412–2472 MHz&nbsp;</p><p><b>WiFi Work Mode:&nbsp;</b>&nbsp; Station/Access Point/Station + Access Point&nbsp;</p><p><b>Wireless Security:</b>&nbsp;&nbsp; Support 64-128 bit WEP, WPA-PSK, and WPA2-PSK&nbsp;</p><p>&nbsp;<b>WiFi Antenna:&nbsp;</b>&nbsp; Pcb Embedded Antenna&nbsp;</p><p><b>Operational&nbsp;WIFI Range:</b>&nbsp;&nbsp; Up to 50 m outdoors Up to 30 m indoors Ranges vary depending on local construction.</p><p><b>Dimensions (HxWxL):</b>&nbsp;&nbsp; 47x45x22 mm&nbsp;</p><p>&nbsp;<b>Electrical Consumption:</b>&nbsp;&lt; 1W</p><p><b>&nbsp;Face Plate Standards:</b>&nbsp;&nbsp; Schneider Old Unica Chassis Bticino Matix Chassis blue (by El Sewedy) Chassis Avena Chassis Verona Chassis</p><p><b>&nbsp;Plastic Material:</b>&nbsp;&nbsp; Non-Flammable Polycarbonate Plastic&nbsp;</p><p><b>&nbsp;Warranty:</b>&nbsp;&nbsp; 5-Year Replacement Warranty (limited against manufacturing defects)&nbsp;</p><p><b>&nbsp;Button:</b>&nbsp;&nbsp; control through touch input. Up-stop-down control from the touch button. touch circuit that works independent of the WiFi chip. The device acts as a touch switch of the WiFi state.</p><p><b>Light Indicators:</b>&nbsp;&nbsp;Two controlled LEDs that indicate: Pairing mode Idle mode Up-and-down operations You can also the LED in the app.</p><p><b>Security:</b>&nbsp;All network traffic is&nbsp;secured in several ways: All data packets encapsulated in HTTP requests are encrypted with the state-of-the-art AES-256 encryption algorithm using randomly generated keys that differ per device per add cycle. Every data packet's lifetime is limited to replay attacks .&nbsp;</p> • Input Range: AC 70-270V 50/60Hz | DC 100-380V • Number of Channels: 2 relay channels to control 3 wire ac shutter motors • Max load per Channel: The maximum load per channel is 10A, or up to 2200 Watts • Working Temperature: 0°C–50°C • Wireless/WiFi Protocol: 802.11 b/g/n (2.4 GHz) • Frequency: 2412–2472 MHz • WiFi Work Mode: Station/Access Point/Station + Access Point • Wireless Security: Support 64-128 bit WEP, WPA-PSK, and WPA2-PSK • Electrical Consumption: < 1W • Plastic Material: Non-Flammable Polycarbonate Plastic
